| General specifications |
|
| Types of |
Inverter heating and cooling series |
| Number of horses |
2 |
| Refrigeration performance (kw) |
5 |
| Refrigeration performance (BTU/hour) |
17,060 |
| Heating efficiency (kw) |
5.8 |
| Heating efficiency (BTU/hour) |
19,790 |
| Energy label |
Level 1 |
| Power data (phase/Hz/volt) |
1/50/220 |
| Net cooling power consumption (kw) |
1.42 |
| Net cold operating current (Ampere) |
6.65 |
| Origin |
Thailand |

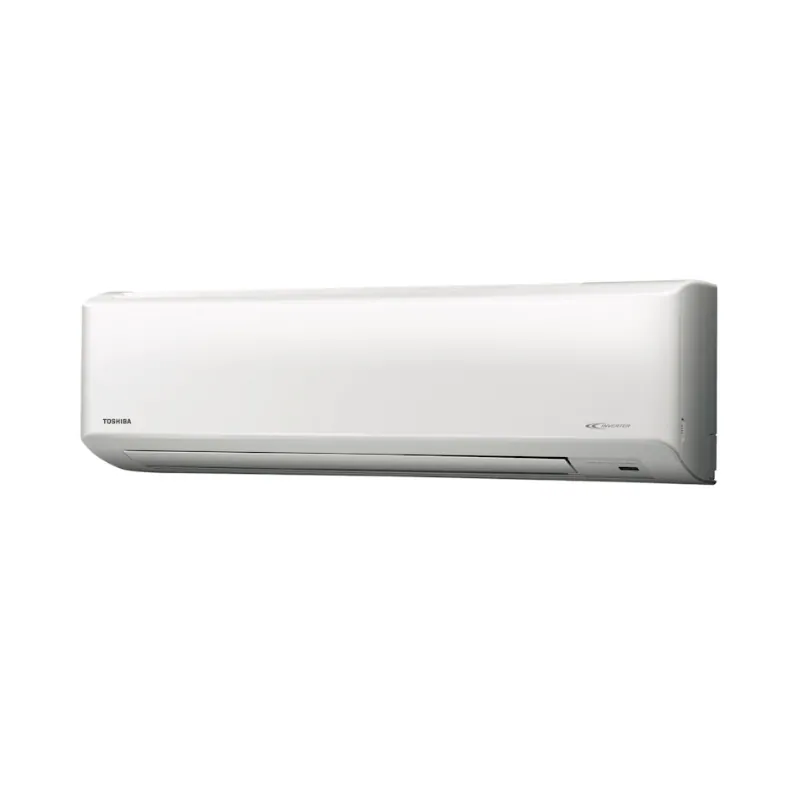

| Indoor unit |
|
| model |
RAS-18N3KV-HK |
| Dimensions height x width x depth (mm) |
320x1050x243 |
| Dimensions height x width x depth (inches) |
12.6×41.4×9.6 |
| Net weight (kg) |
13 |
| Air-conditioning air volume (cubic meters/hour) |
954 |
| Heating air volume (cubic meters/hour) |
990 |
| Dehumidification capacity (liter/hour) |
2.8 |
| High/low volume of air-conditioning operation (dB) |
44/32 |
| Heating operation sound volume high/low (decibel) |
44/32 |
| The outdoor unit |
|
| model |
RAS-18N3AV-HK |
| Dimensions height x width x depth (mm) |
550x780x290 |
| Dimensions height x width x depth (inches) |
21.7×30.8×11.5 |
| Net weight (kg) |
39 |
| High/low volume of air-conditioning operation (dB) |
49 |
| Heating operation sound volume high/low (decibel) |
50 |
| Refrigerant |
R410A |
| Pipe size |
|
| Liquid flow line (mm/inch) |
6.35(1/4″) |
| Airflow pipe (mm/inch) |
12.7(1/2″) |
