Features:
Performance Specifications
-
Capacity: 1.5 Ton
-
Category: DC Inverter
-
Color: Ocean White
-
Cooling Capacity: 21,000 BTU
-
Running Current (Cooling): 2.3 ~ 8.1 A
-
Power Input (Cooling): 0.52 ~ 1.85 kW
-
Heating Capacity: 20,300 BTU
-
Running Current (Heating): 2.4 ~ 8.3 A
-
Power Input (Heating): 0.54 ~ 1.9 kW
Other Parameters
-
Input Power Supply: 1PH, 220V / DC 80V / 380V AC, 50–60Hz
-
Air Flow Volume: 1150 m³/h
-
Refrigerant Type: R-32
-
Refrigerant Amount: 1050 g

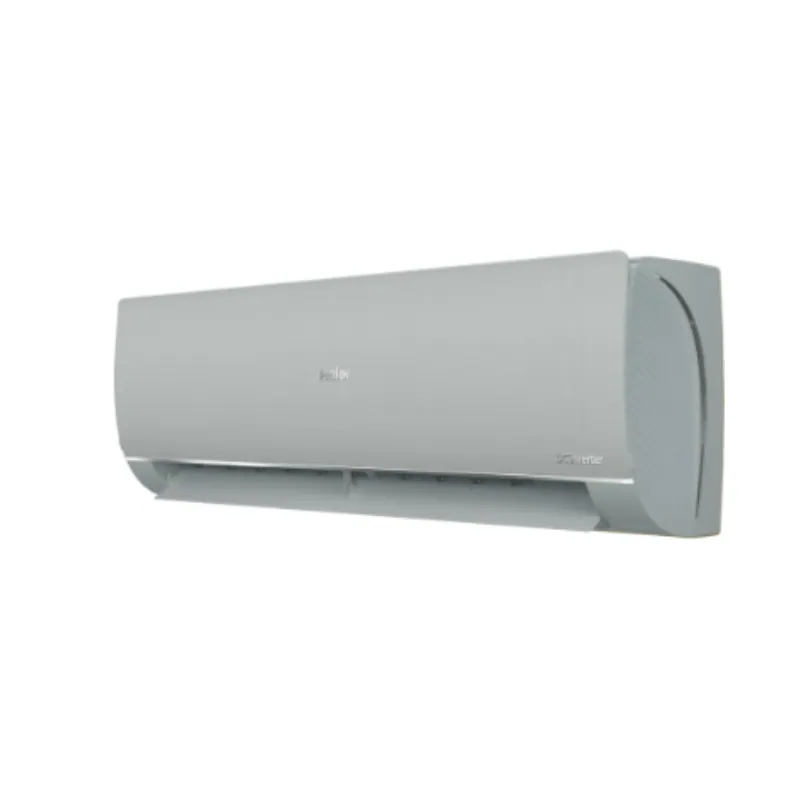

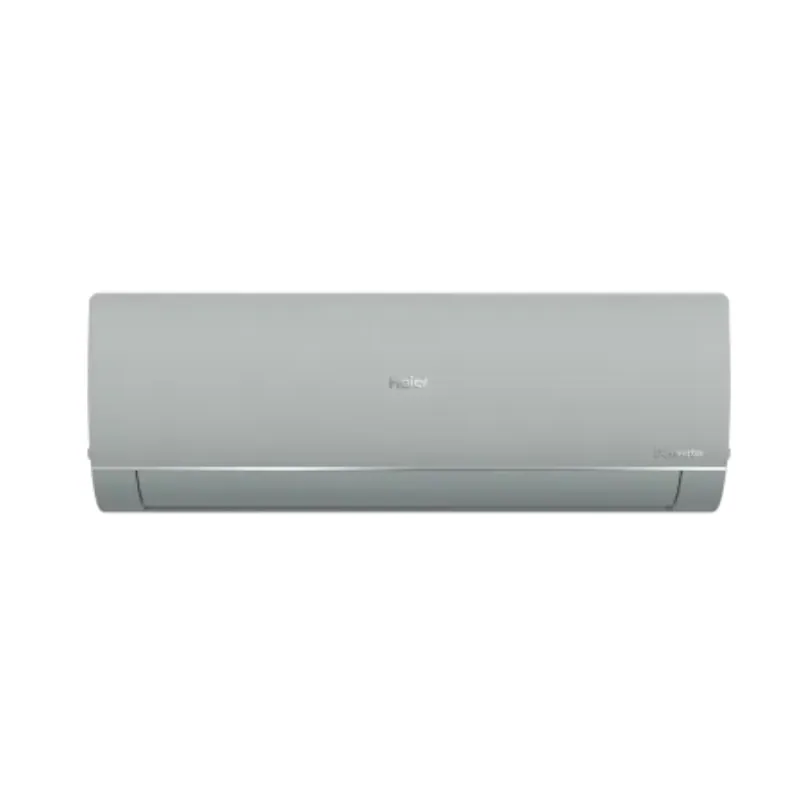

Indoor Unit
-
Net Dimensions (L × W × H): 1015 × 325 × 225 mm
-
Packing Dimensions (L × W × H): 1090 × 415 × 313 mm
-
Net Weight: 14.5 kg
-
Gross Weight: 17.7 kg
Outdoor Unit
-
Net Dimensions (L × W × H): 820 × 310 × 630 mm
-
Packing Dimensions (L × W × H): 942 × 392 × 693 mm
-
Net Weight: 37.5 kg
-
Gross Weight: 41.5 kg
Features
-
Cooling Mode
-
Heating Mode
-
Dry Mode
-
Vertical Flapper Auto Swing
-
Live Monitoring via Mobile App
-
Built-in WiFi
-
Self-Clean Function
-
Anti-Corrosion Protection
-
Turbo Function
-
UPS Enabled Operation
Accessories
-
Liquid Side Installation Kit: Copper, 2920 mm length, 6 mm diameter, 0.65 mm thickness
-
Gas Side Installation Kit: Copper, 2920 mm length, 12 mm diameter, 0.65 mm thickness
-
Power Cable: Not Included
-
Communication Cable (Indoor–Outdoor): 4 × 1.0 mm²
Warranty
-
Compressor Warranty: 10 Years
-
Parts Warranty: 5 Years (All Parts)
