Midea MSAG2B-12HRDN1-QC0 1.0 Ton Inverter Split AC

Midea MSAG2B-12HRDN1-QC0 1.0 Ton Inverter Split AC Features:

Power Supply

• Power Supply: 220–240V, 1Ph, 50Hz

Cooling Performance

• Capacity: 12000 (2700~12400) Btu/h
• Input Power: 1096 (150~1296) W
• Current: 6.7 (1.2~8.3) A
• EER: 3.21 W/W
• Energy Class: A

Heating Performance

• Capacity: 12000 (2730~12300) Btu/h
• Input Power: 975 (376~1040) W
• Current: 6.0 (3.26~6.8) A
• COP: 3.61 W/W
• Energy Class: A

Maximum Limits

• Max Input Consumption: 2200 W
• Max Current: 11 A

Compressor

• Model: KSK103D33UEZ3
• Type: Rotary
• Brand: GMCC
• Capacity: 2035 / 3255 W
• Input: 325 / 826 W
• Rated Current (RLA): 2.40 / 5.65 A
• Refrigerant Oil: Ester Oil VG74 (310 ml)

Indoor Fan Motor

• Model: YKFG-13-4-38L-4
• Motor Type: AC
• Input: 40 W
• Capacitor: 1.2 µF
• Speed (High/Mid/Low): 1200 / 950 / 850 r/min

Indoor Coil

• Number of Rows: 2
• Tube Pitch × Row Pitch: 21 × 13.37 mm
• Fin Spacing: 1.2 mm
• Fin Type: Hydrophilic Aluminum
• Tube Type: Φ7 Inner Groove Tube
• Coil Dimensions: 598 × 84 × 13.37 mm, 598 × 105 × 26.74 mm (×2)
• Number of Circuits: 3

Indoor Air & Noise

• Air Flow (High/Mid/Low): 600 / 450 / 350 m³/h
• Noise Level (High/Mid/Low): 40.5 / 32.5 / 28 dB(A)

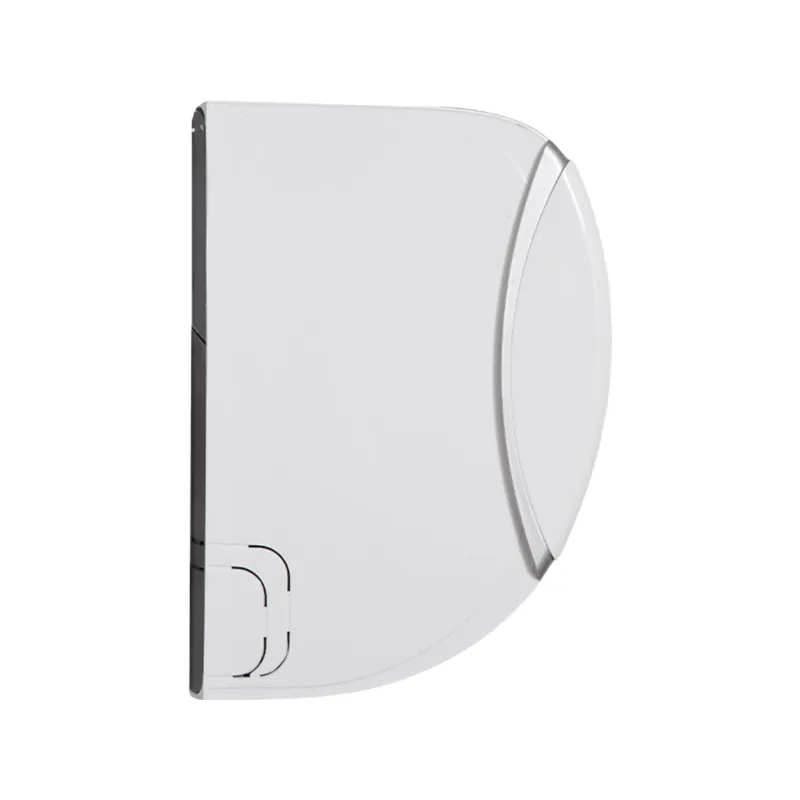

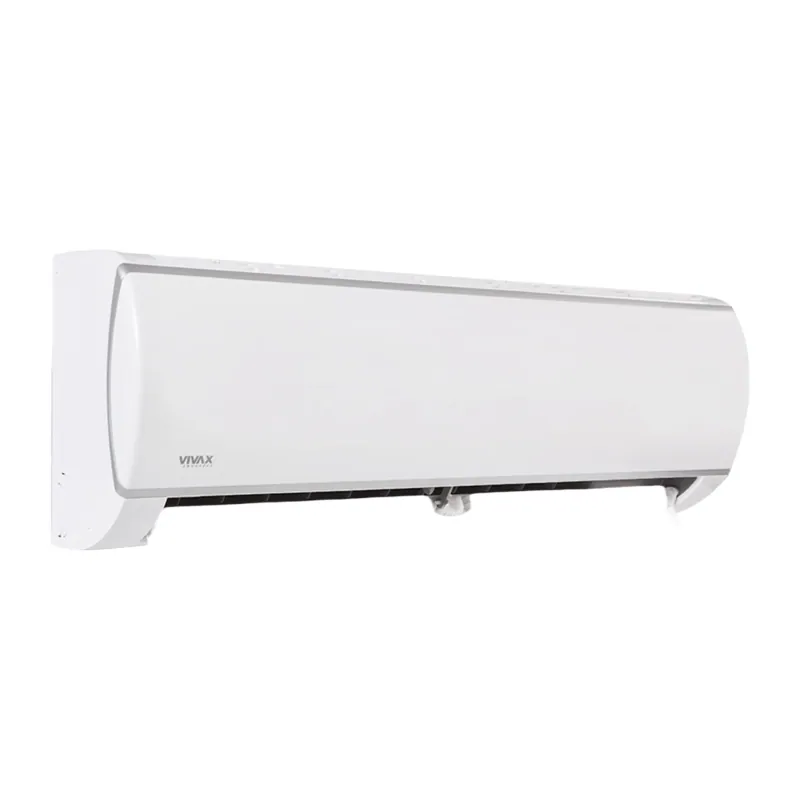

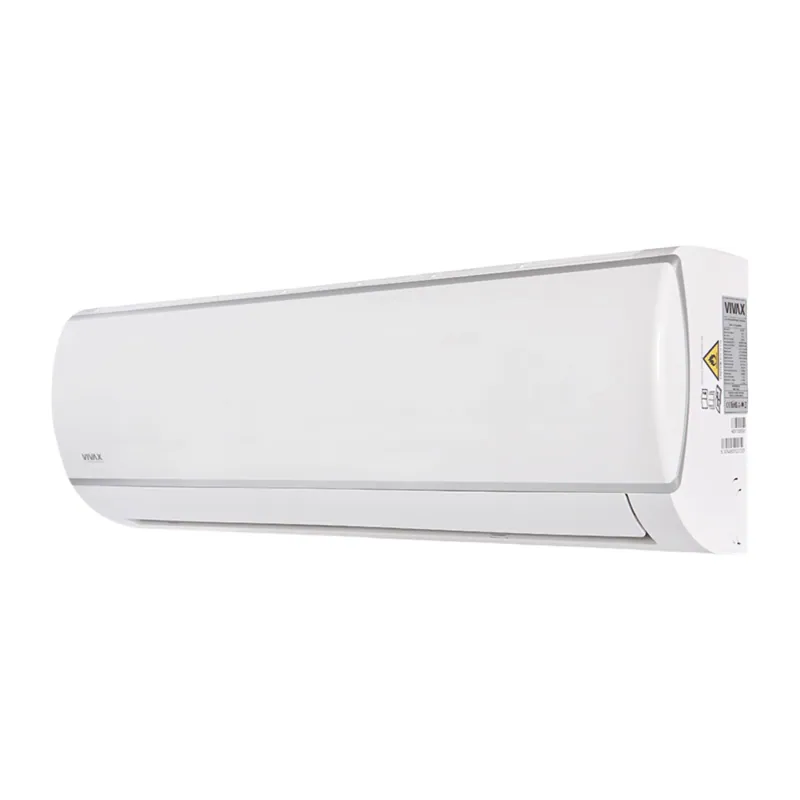

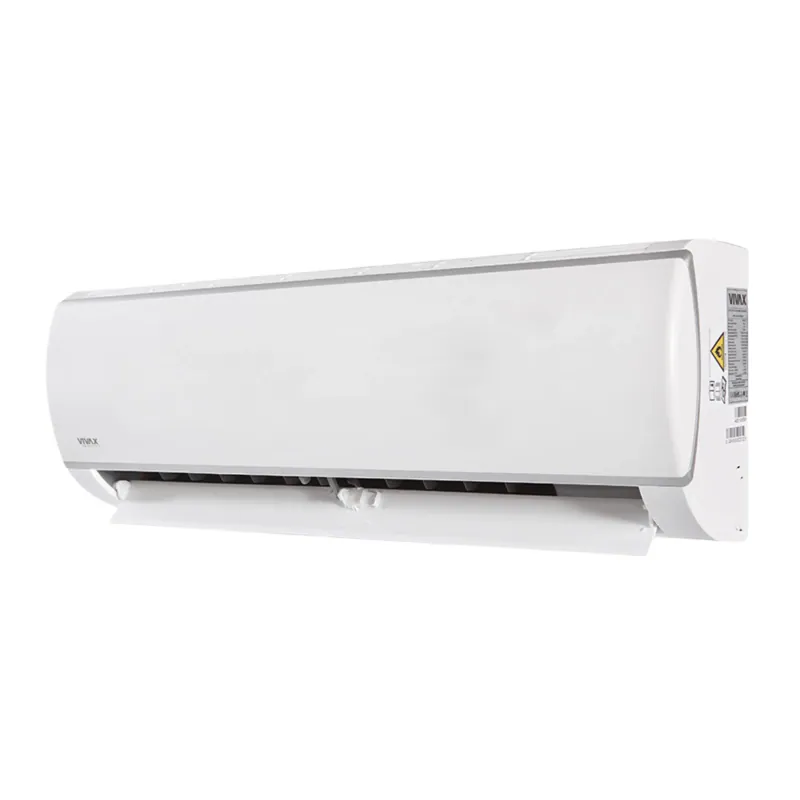

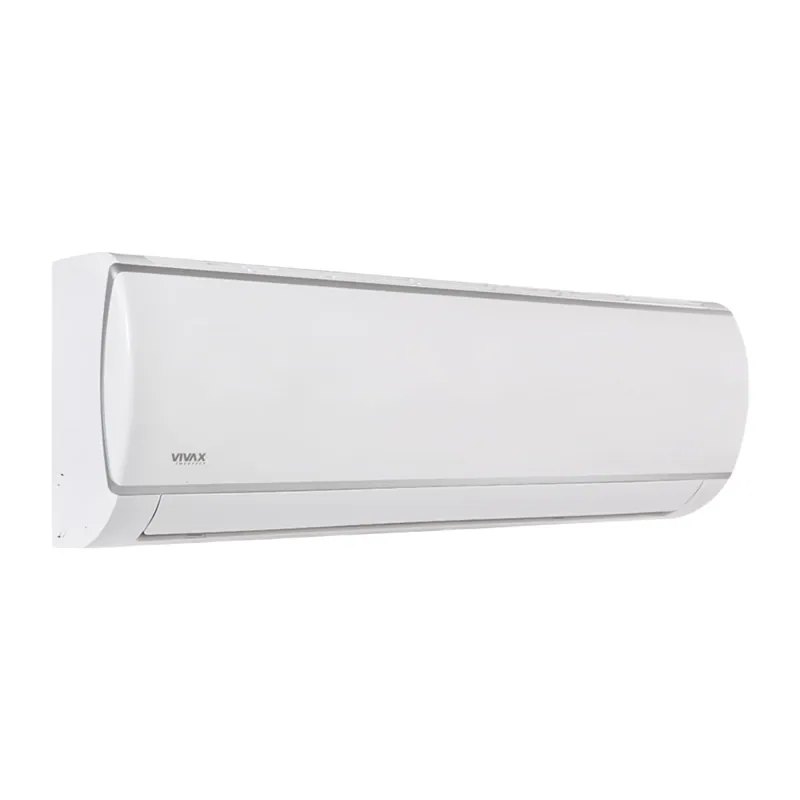

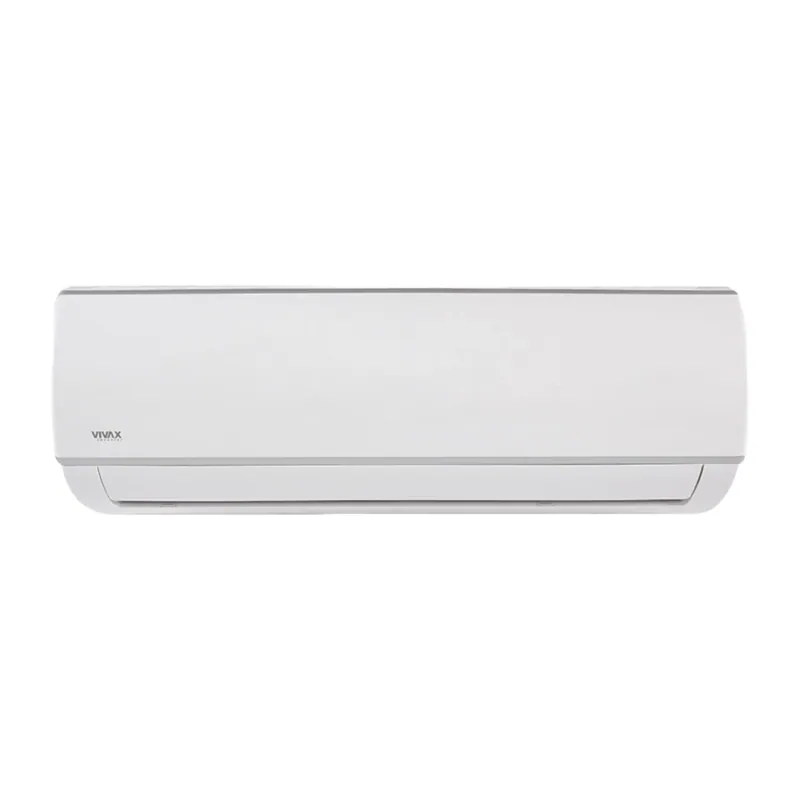

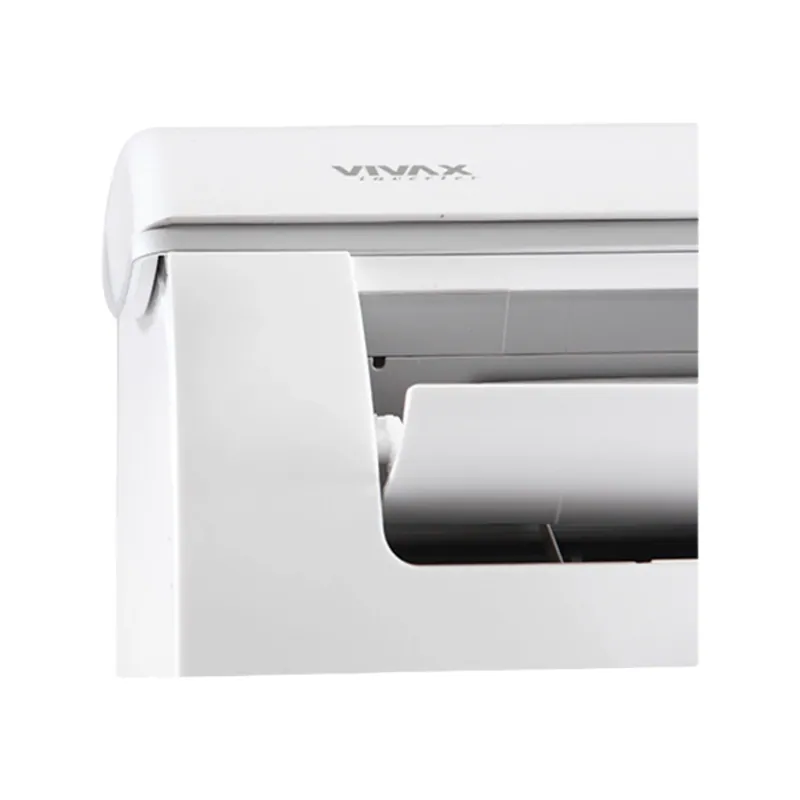

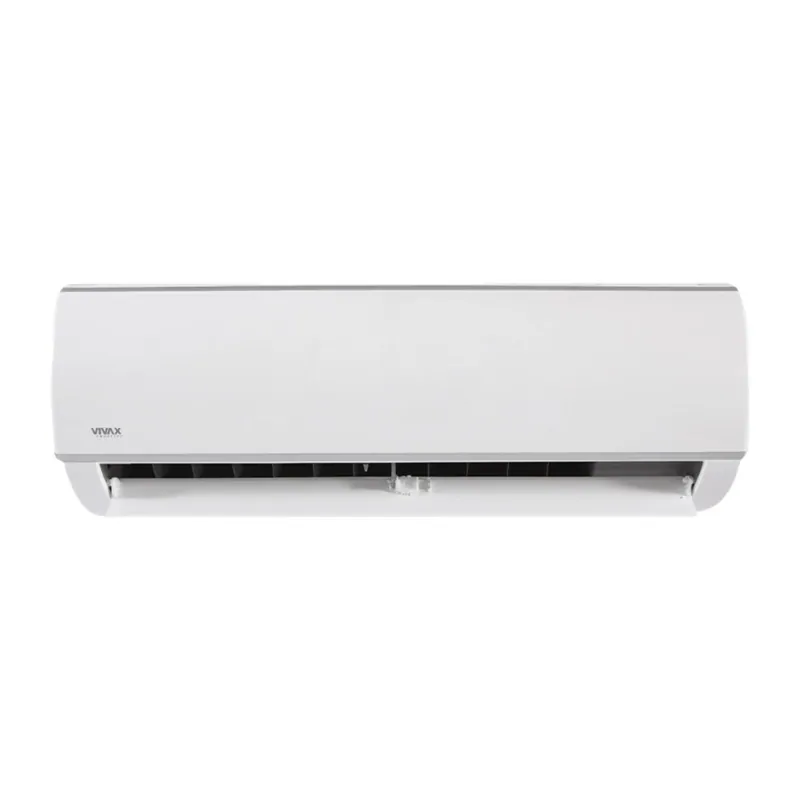

Indoor Unit

• Dimensions (W×D×H): 805 × 194 × 285 mm
• Packing Dimensions: 870 × 270 × 365 mm
• Net / Gross Weight: 8.2 / 10.4 kg

Outdoor Fan Motor

• Model: ZKFN-25-10-5L
• Motor Type: DC
• Speed: 880 / 450 r/min

Outdoor Coil

• Number of Rows: 1
• Tube Pitch × Row Pitch: 21 × 13.37 mm
• Fin Spacing: 1.4 mm
• Fin Type: Hydrophilic Aluminum
• Tube Type: Φ7 Inner Groove Tube
• Coil Dimensions: 750 × 462 × 13.37 mm
• Number of Circuits: 2

Outdoor Air & Noise

• Air Flow: 1800 m³/h
• Noise Level: 55.5 dB(A)

Outdoor Unit

• Dimensions (W×D×H): 720 × 270 × 495 mm
• Packing Dimensions: 835 × 300 × 540 mm
• Net / Gross Weight: 22.3 / 24.0 kg

Refrigerant

• Type: R410A
• Charge: 0.72 kg
• Design Pressure: 4.2 / 1.5 MPa

Piping & Installation

• Pipe Size (Liquid/Gas): 6.35 mm (1/4″) / 12.7 mm (1/2″)
• Max Pipe Length: 25 m
• Max Height Difference: 10 m
• Connection Wiring: 1.5 × 4
• Plug Type: 1.5 × 3 / VDE Plug

Controls & Operation

• Thermostat Type: Remote Control
• Operation Temperature Range: 17–30°C

Working Temperature Range

• Indoor (Cooling/Heating): 17–32°C / 0–30°C
• Outdoor (Cooling/Heating): -15–50°C / -15–30°C

Coverage Area

• Recommended Area (Cooling): 16–23 m²
