Features:

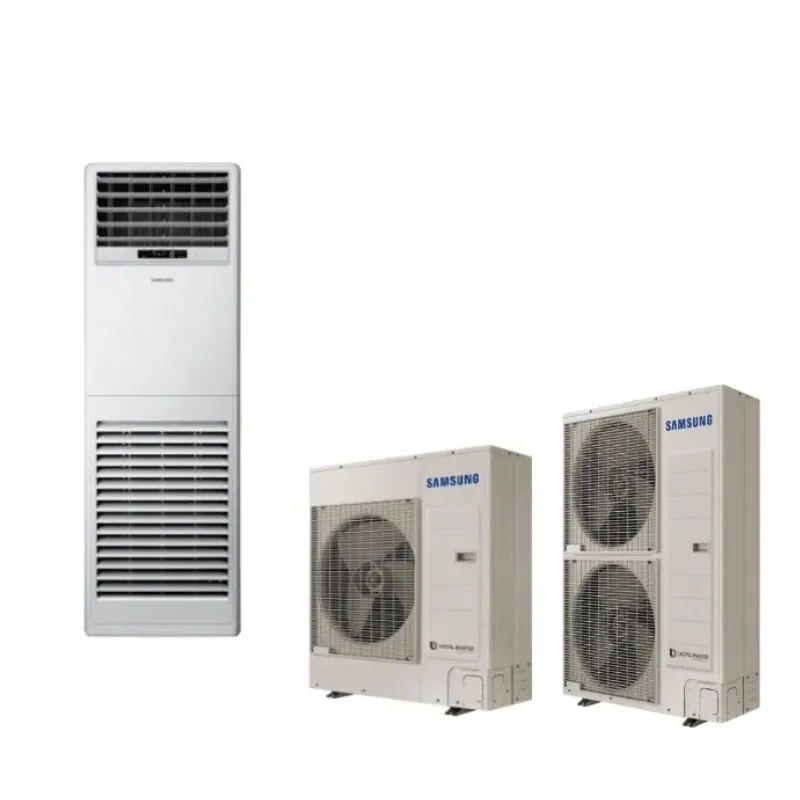

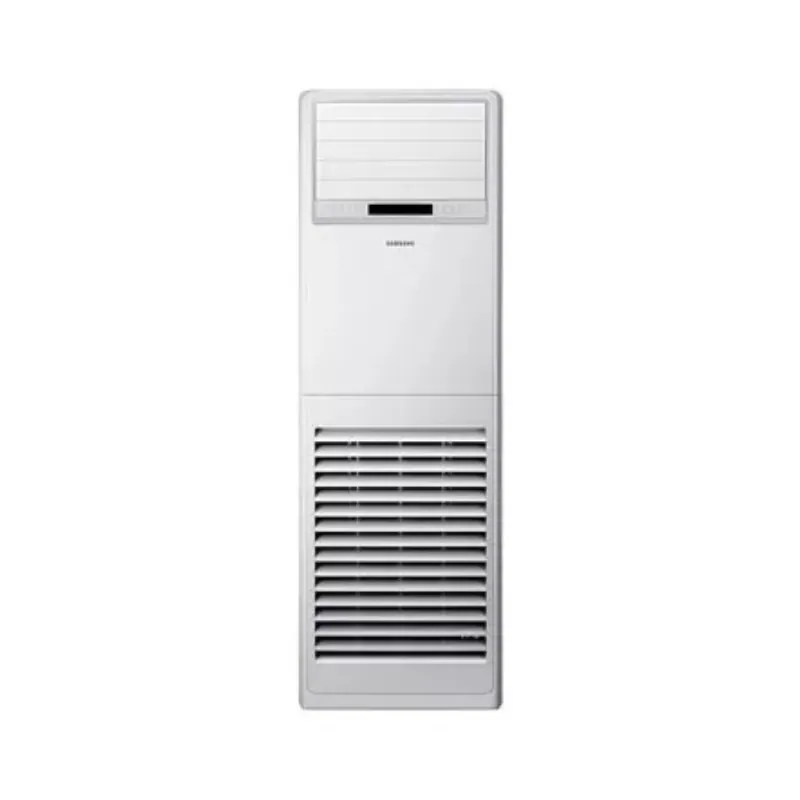

Indoor Unit Column AC140BNPDKH/EU 48,000 BTU 14.0 kW
Indicatively for rooms up to 140 m2, we recommend specialized technical advice
Length: mm. 610 Height: mm. 1850 – Depth: mm. 400.
Standard accessories: Remote control AR-EH03E.
Optional accessories: Wi-Fi interface.

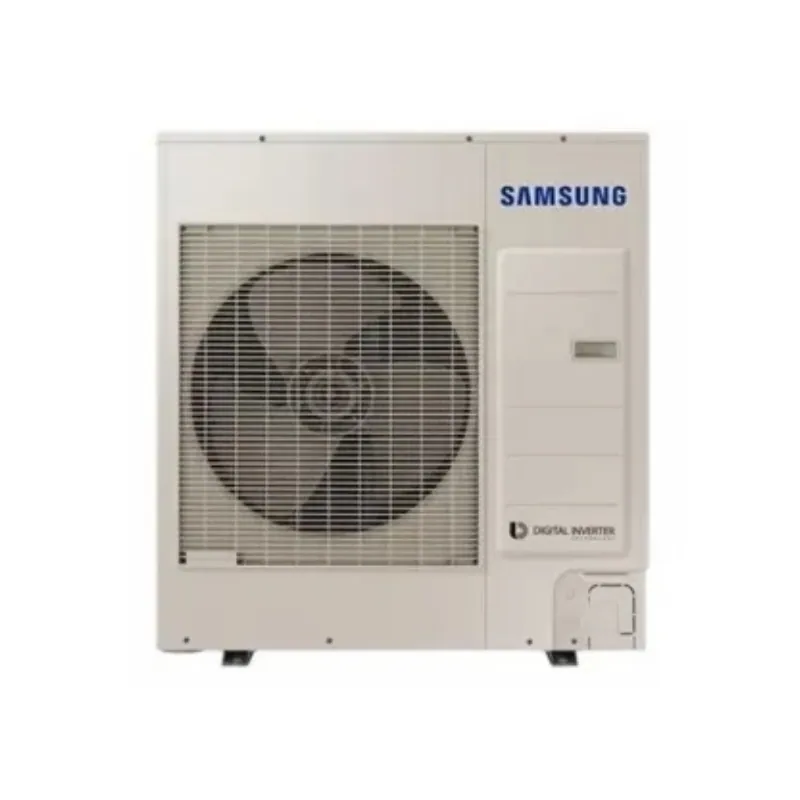

Outdoor Unit AC140BXPDNH/EU Three-phase 47,600 BTU 14.0 kW
Operation with refrigerant gas: R-32
Length: mm. 940 Height: mm. 1210 – Depth: mm. 330.
Internal Column Units
– Fan with Inverter motor; dust filter included
– New generation touch display with integrated controls
– Communication with “Nasa” protocol
– Wi-Fi kit (optional)
– Wireless remote control included
– Power supply: Single-phase 220 V – 50 Hz or Three-phase 400 V – 50 Hz
– Inverter Twin Rotary outdoor unit compressor (except 10.0kW Single Rotary model)
- Manufacturer: Samsung
- Series: KE Wall Split
- Indoor Unit SKU: AC140BNPDKH/EU
- Outdoor Unit SKU: AC140BXPDNH/EU
- Cooling Capacity: 13.40 kW
- Heating Capacity: 15.50 kW
- Suitable for Rooms Up To: 104.80 m²
- Power Supply: Three-Phase
- Refrigerant Gas: R410A
- Refrigerant Charge Included: 3.5 kg
- Additional Gas Charge: 50 g/m
- Sound Pressure Level (Cooling): 45 dB
- Sound Pressure Level (Heating): 45 dB
- Indoor Unit Dimensions (H × W × D): 1850 × 6160 × 400 mm
- Outdoor Unit Dimensions (H × W × D): 1210 × 940 × 330 mm
- Maximum Total Pipe Length: 75 m
- Maximum Vertical Pipe Length: 30 m
- Pipe Diameter (Liquid / Gas): 3/8″ – 5/8″
- Cold Working Limit: -15°C
- Heating Working Limit: -20°C
- Wi-Fi Control: Optional
